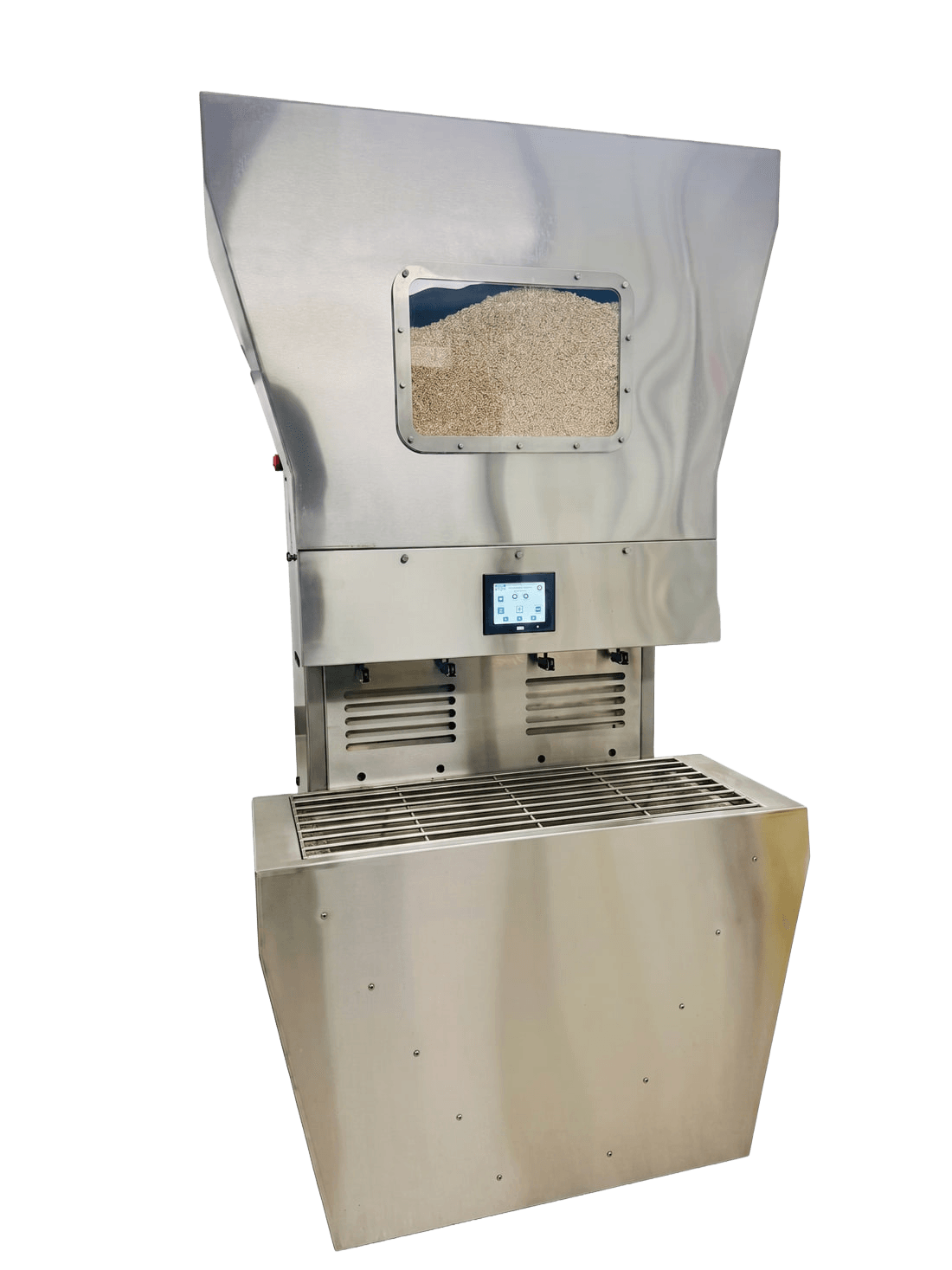

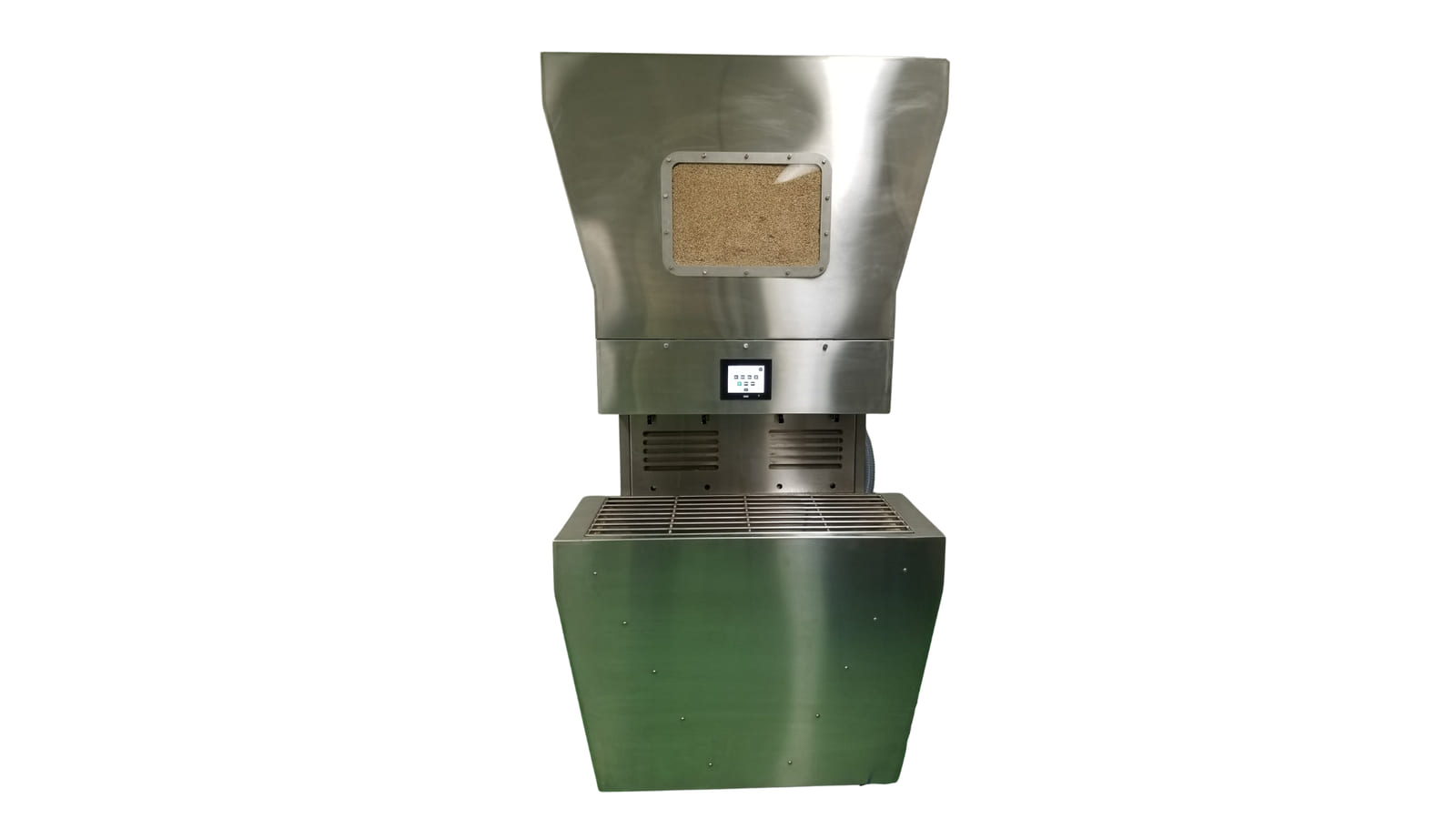

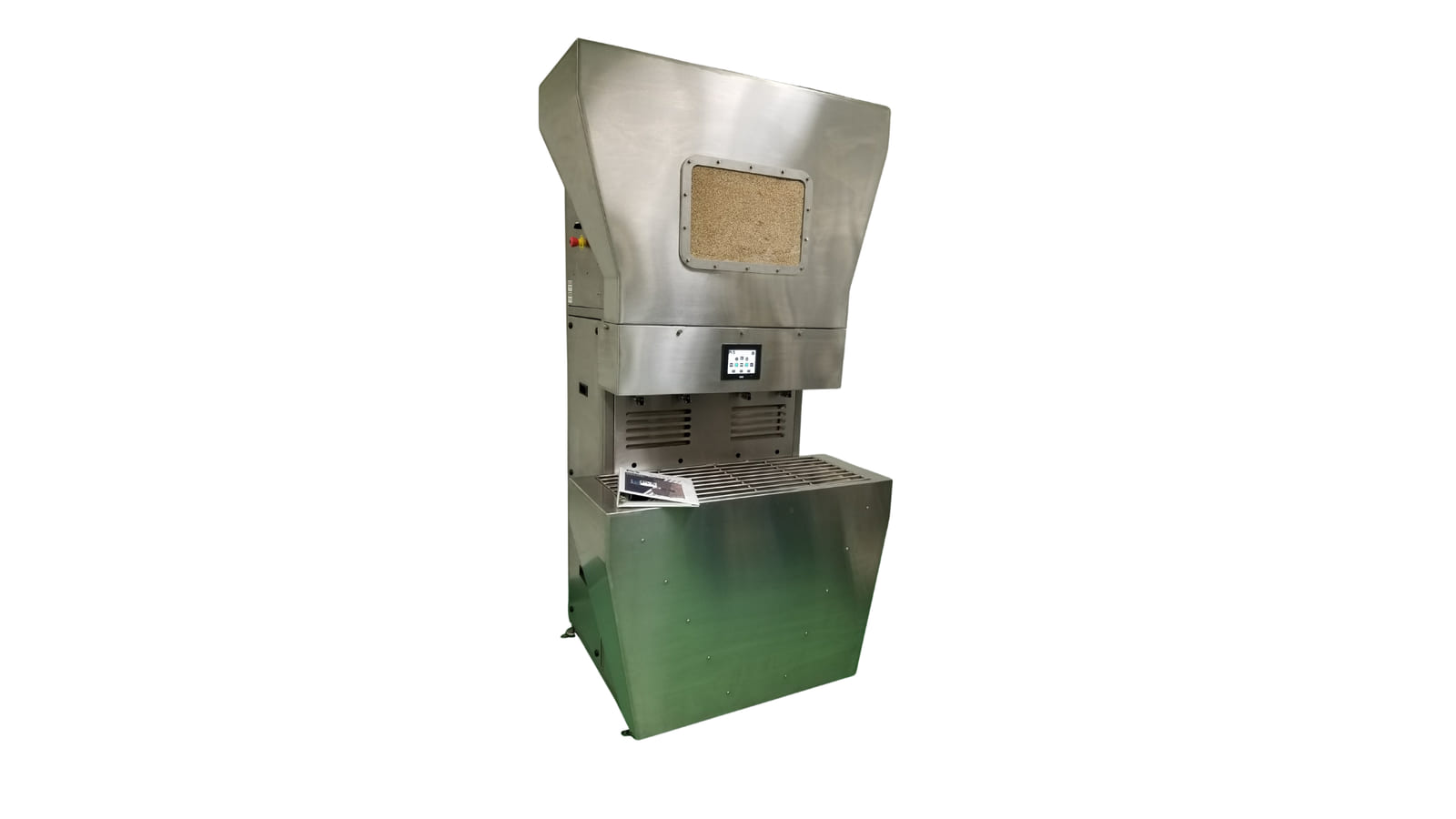

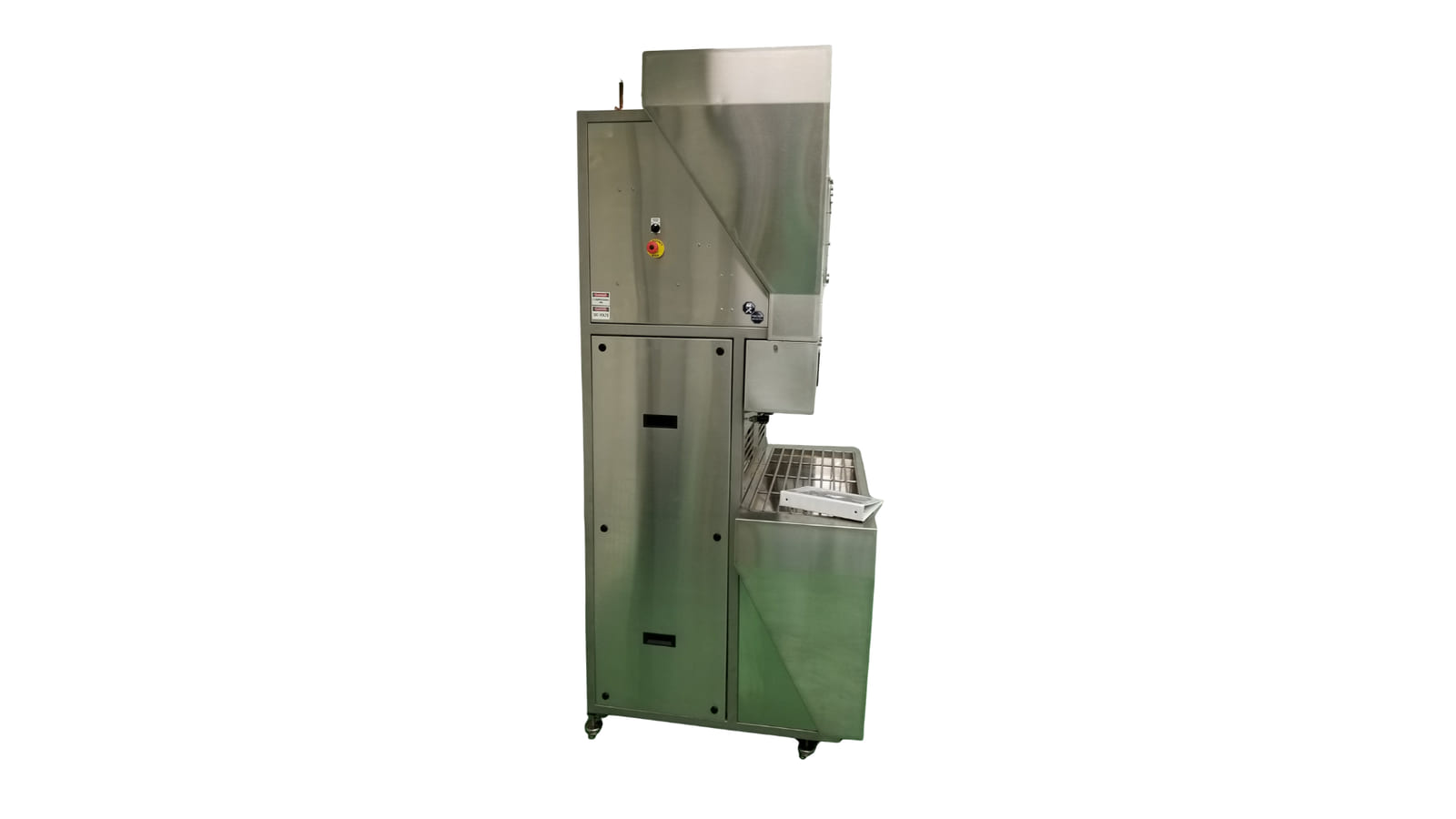

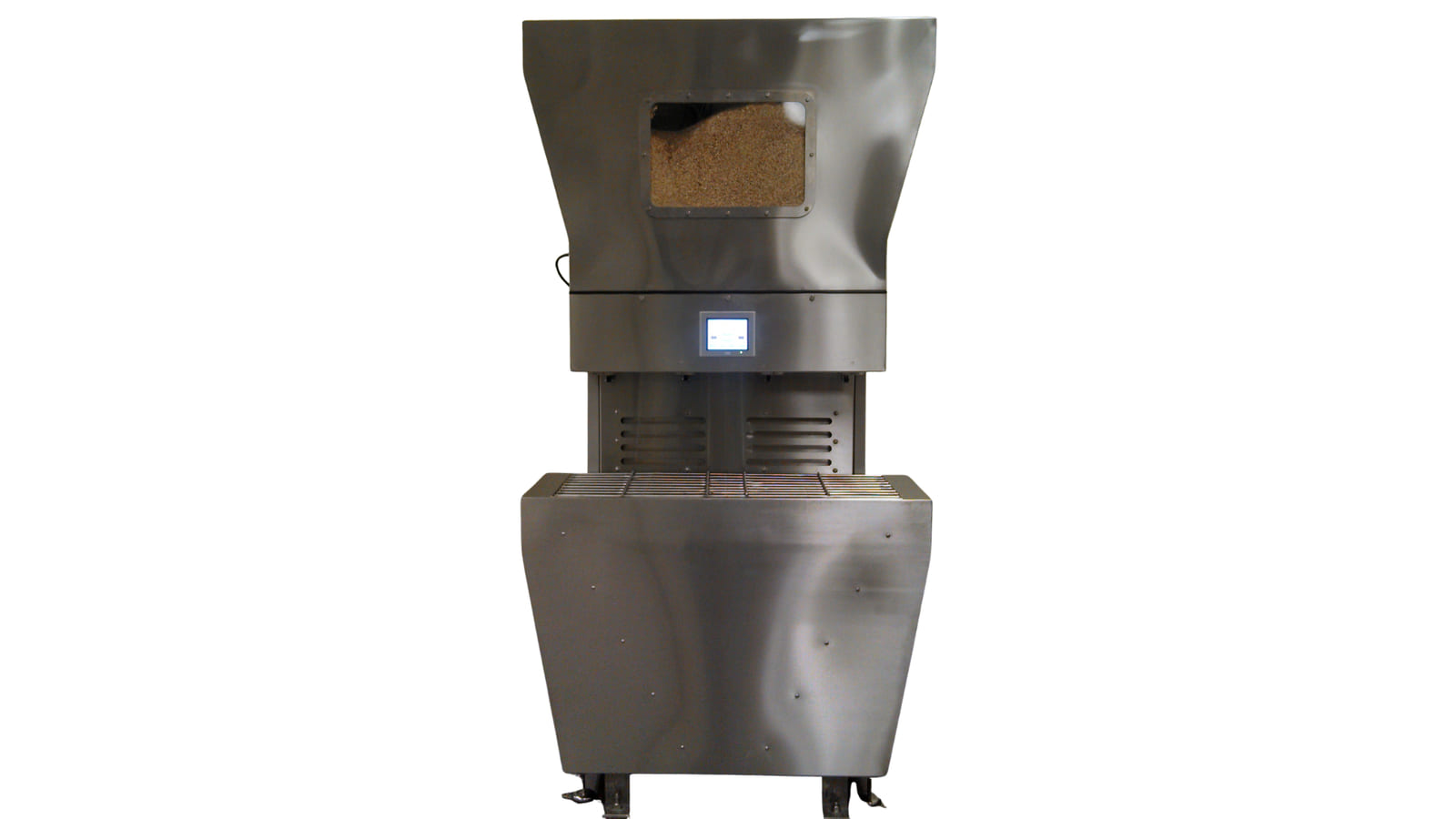

504 Four Chute Bedding Dispenser
The 504 Series is a semi-automatic unit designed to dispense bedding into four standard rodent cages simultaneously or individually when placed into position within the filling area. Capable of handling most beddings including corn cob, paper, and wood chip based products commonly used in the life science industry, with microprocessor control and color touch screen interface.
Key Features
Four Simultaneous Dispensing

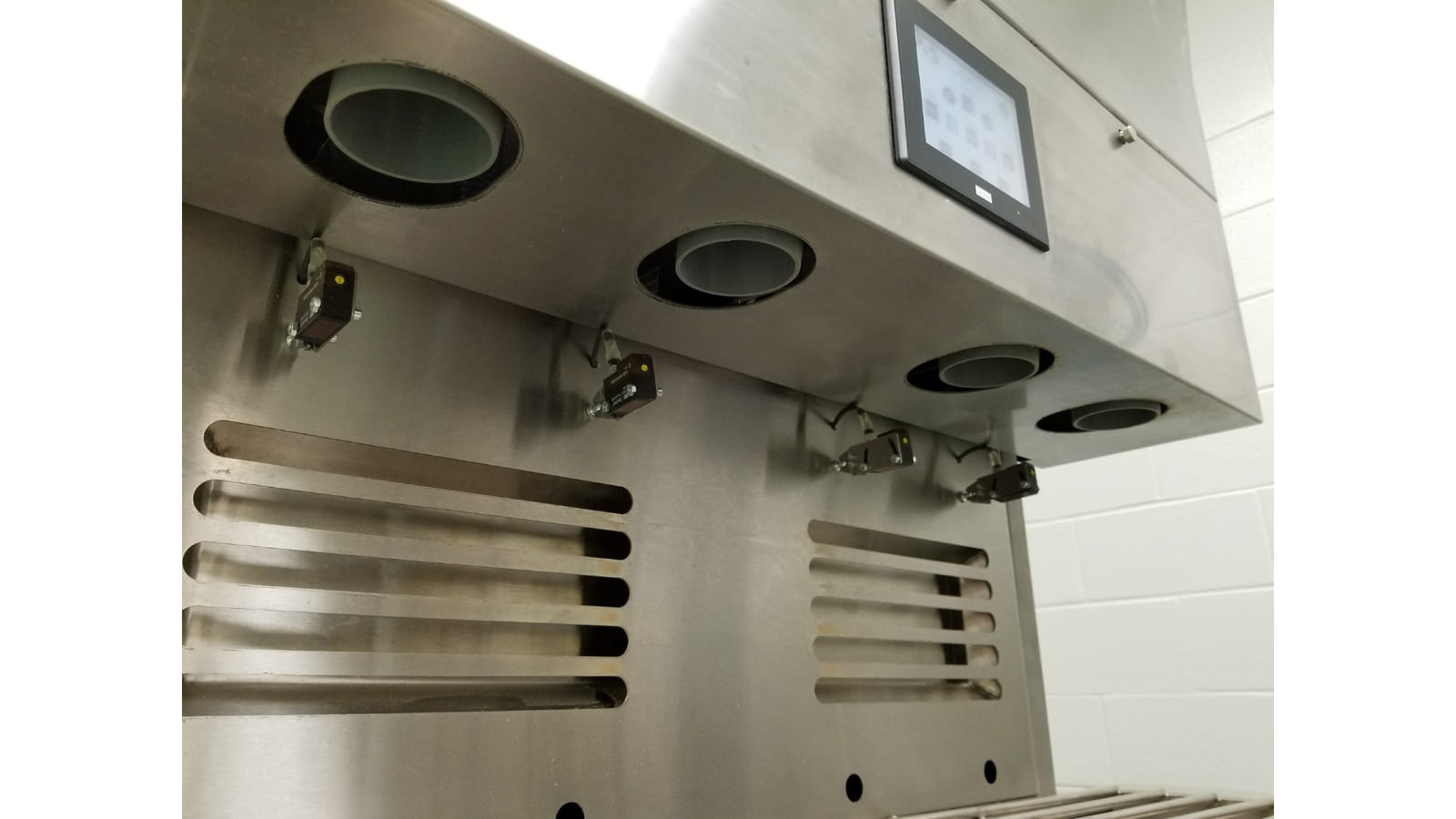

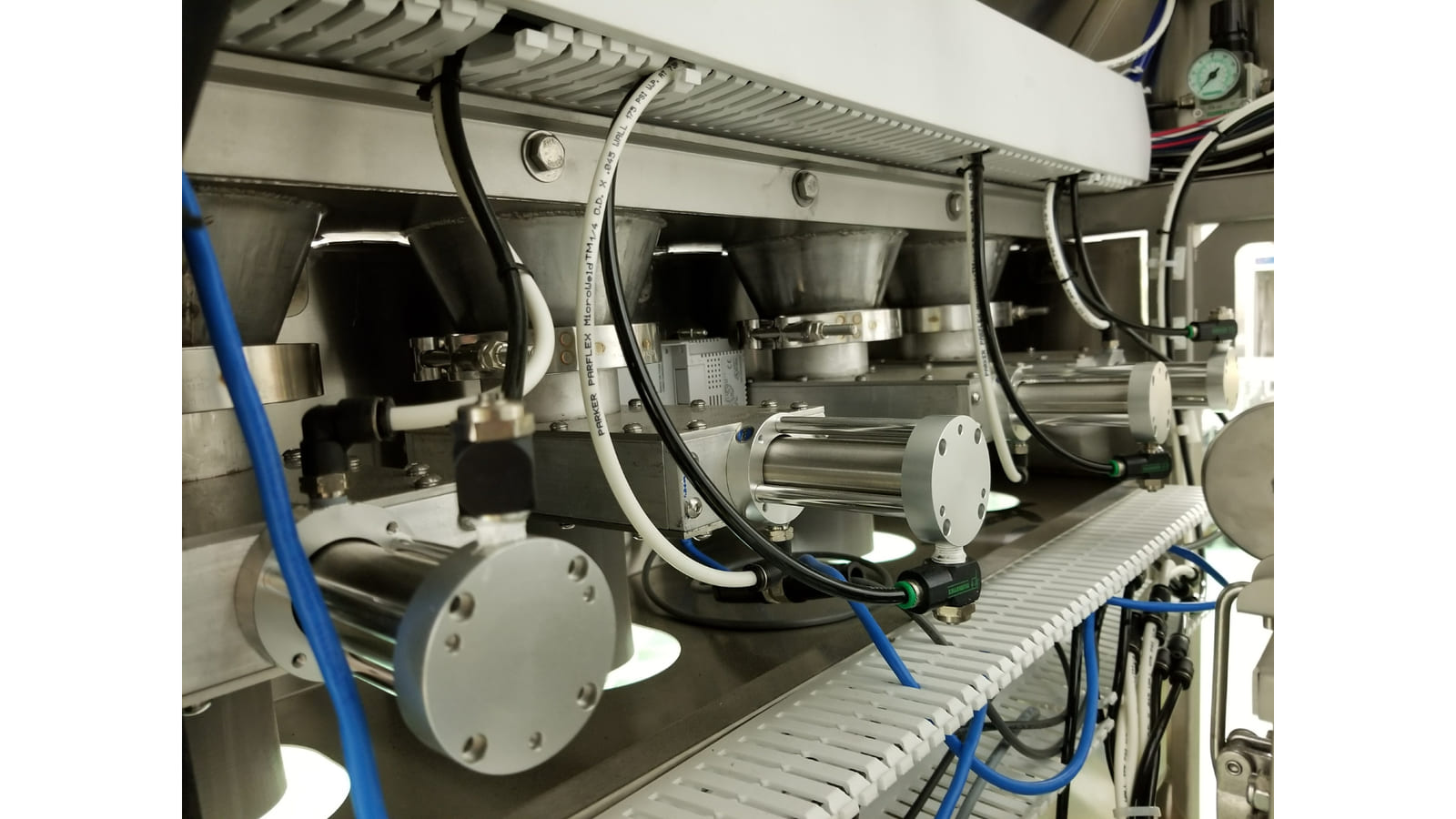

Four dispensing valves with cage-present photoelectric sensors fill four standard rodent cages simultaneously or individually, maximizing throughput in vivarium operations.
304 Stainless Steel Construction
#4 finished panels and hoppers with matte finish framework and internal components for easy cleaning and compliance with life science facility standards.
Allergen Dust Collector
Integrated allergen dust collector with pulse filter cleaning system protects operators and maintains air quality during the dispensing process.

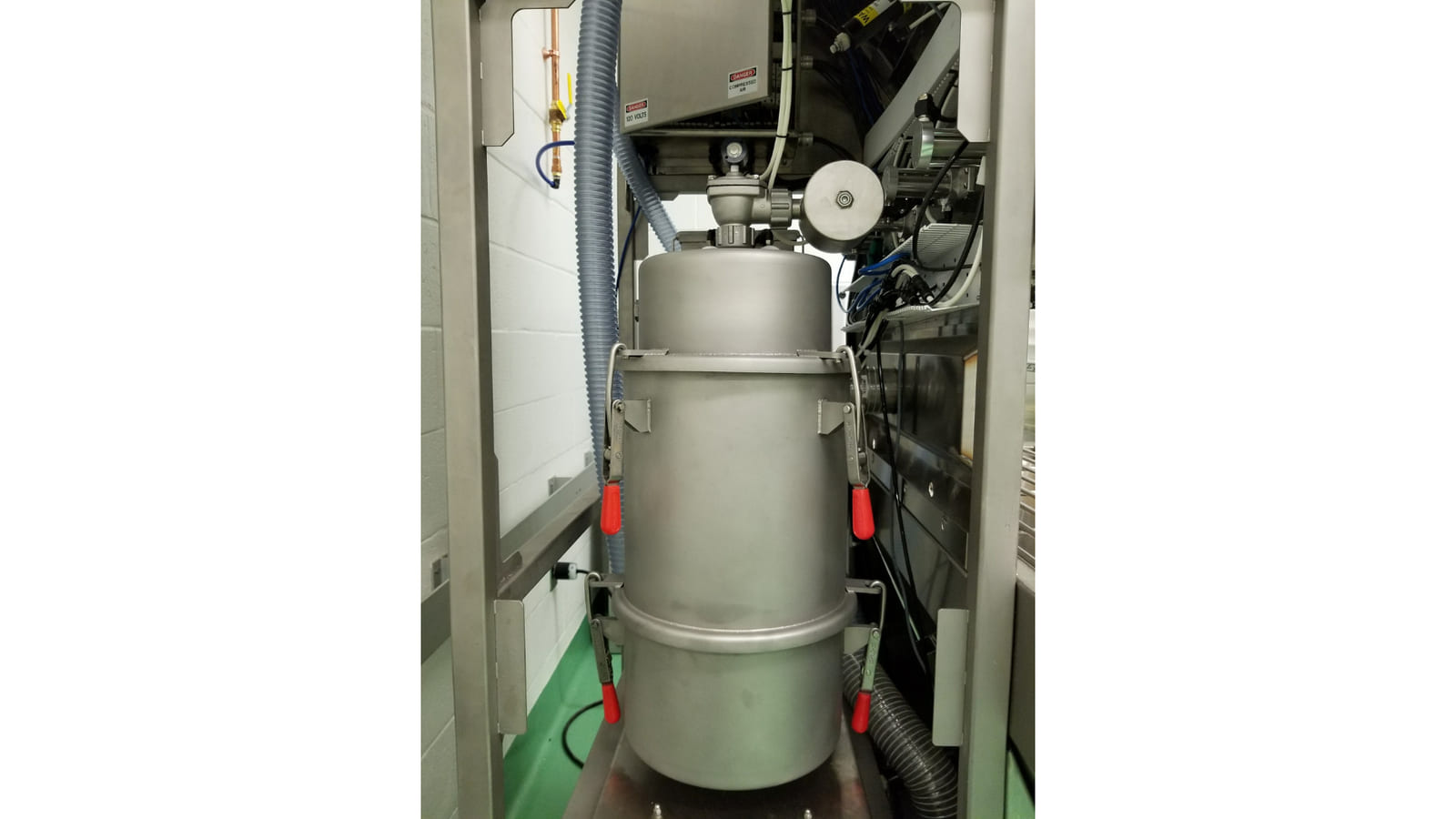

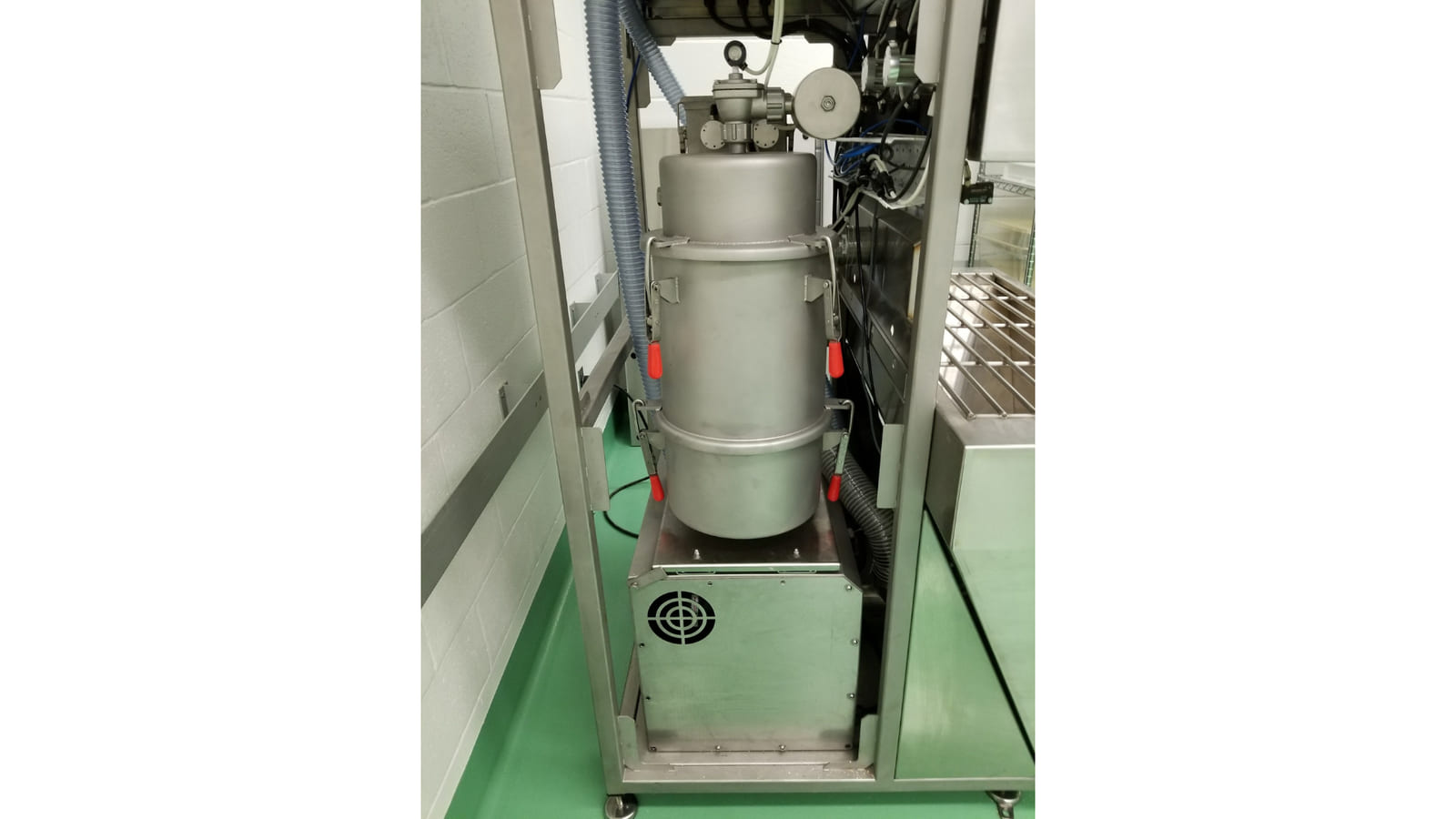

Vacuum Transfer Capability

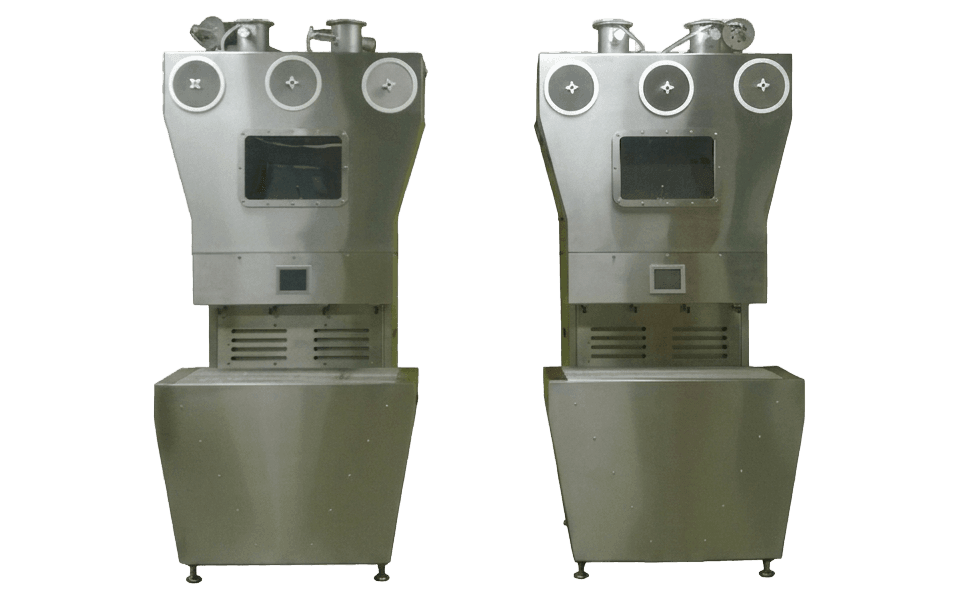

Can be filled by emptying bags through the dispensing grate or via pneumatic conveying from bulk bags for higher volume applications.
Vibratory Flow Promotion
Vibratory flow promotion system ensures consistent material flow and prevents bridging, even with fibrous or irregularly shaped bedding materials.
Zero-Waste Spillage Recovery
Spillage passes through the dispense grate and is contained in the refill hopper, eliminating waste and keeping the work area clean.
Specifications
| Dispensing | 4 chutes with cage-present photoelectric sensors |
| Storage Volume | 12 cubic feet |
| Construction | 304 S.S. #4 Finished Panels, Matte Finish Framework |
| Dust Collection | Allergen dust collector with pulse filter clean system |
| Controls | Microprocessor with color touch screen interface |
| Material Filling | Manual bag dump or pneumatic conveying from bulk bags |
| Flow Promotion | Vibratory system |
| Materials Handled | Corn cob, paper, wood chip beddings |
| Options | Integral air compressor, HEPA filter exhaust, dust collection system |
