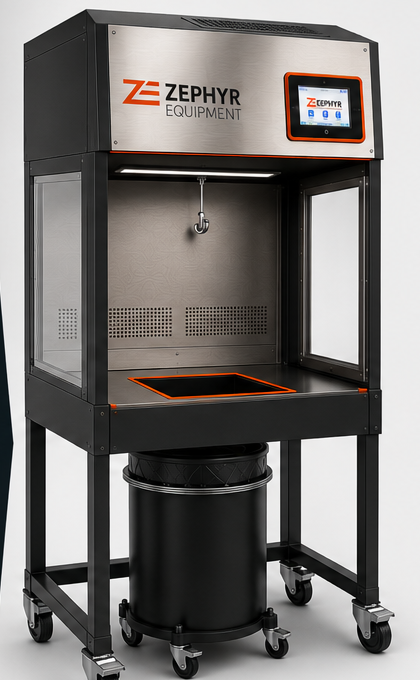

16 Series Stand-Alone Bedding Dump Station
The Series 16 Stand-Alone Bedding Dump Station delivers best-in-class operator protection and efficiency in a compact, ergonomic design. Soiled bedding is manually deposited into a large dump opening where high-efficiency HEPA filtration, a top-mounted carbon exhaust filter, and optimized airflow contain allergens, dust, and odors. Fully self-contained with its own fan motor and filtration, the unit collects waste into a polyethylene bin without requiring connection to a facility vacuum or dust collection system.
Key Features
Operator Protection
Contains allergens and contaminants with high-efficiency HEPA filtration and optimized airflow, protecting operators throughout the bedding disposal process.
Top-Mounted Exhaust Carbon Filter
Absorbs odors and gaseous contaminants including ammonia, keeping the work area and surrounding facility air clean.
HEPA Filter & Pre-Filters
Extended HEPA filter life with pre-filters (ISO Coarse ≥70% per ISO 16890; G4 per EN779) for easy removal of larger particles and superior air quality.
Sliding Reduction Funnel
A large dump opening with sliding reduction funnel simplifies waste bag removal while maintaining operator protection.
LED Light Bar with Dimmer
High-efficiency LED light bar with dimmer provides maximum visibility of the work area.
Touch Screen Control Panel
5.6" touch screen with automatic inflow air regulation maintains constant airflow air speed for consistent, reliable performance.
Specifications

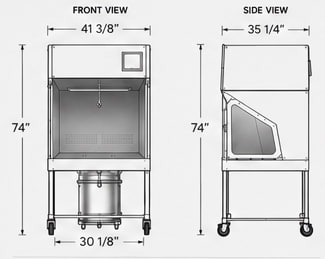

| Overall Dimensions (W×D×H) | 41⅜" W × 35¼" D × 74" H (Fixed Stand) |
| With Lifter (Optional) | 41⅜" W × 35¼" D × 80⅝" H |
| Working Area (W×D×H) | 38" W × 26" D × 23¼" H |
| Dump Opening | 38" W × 26" D (Square) |
| Construction | 304 Stainless Steel, Scotch Brite Finish |
| Filtration | HEPA Filter w/ Pre-Filters; Top-Mounted Carbon Filter (Standard) |
| Lighting | LED Light Bar with Dimmer |
| Control System | 5.6" Touch Screen, Automatic Inflow Air Regulation |
| Fan Motor | High Efficiency Fan Motor |
| Electrical | 120V, 60 Hz, 1 Phase |
| Casters | Locking Swivel Casters (4) |
Applications
Photos & Media
16 Series Stand-Alone Bedding Dump Station FAQ
No. The Series 16 is fully self-contained, with its own high-efficiency fan motor, HEPA filtration, and top-mounted carbon exhaust filter, so it operates stand-alone and collects waste into a polyethylene bin. A thimble duct exhaust transition is available as an option if you prefer to duct exhaust externally.
Standard filtration includes a HEPA filter with pre-filters (ISO Coarse ≥70% per ISO 16890; G4 per EN779) plus a top-mounted exhaust carbon filter that absorbs odors and gaseous contaminants including ammonia. An additional exhaust carbon filter is available as an option.
The Series 16 can be configured with a 60L or 105L polyethylene bin with stainless steel trolley, or a stainless steel waste bag trolley, to collect disposed bedding.
Options include a 60L or 105L polyethylene bin with S/S trolley, stainless steel waste bag trolley, thimble duct exhaust transition, additional exhaust carbon filter, and a Trespa shelf. An optional lifter increases the overall height to 80⅝".
Need a 16 Series Stand-Alone Bedding Dump Station
for Your Facility?
Tell us about your vivarium and we'll engineer the right solution for your operation.
