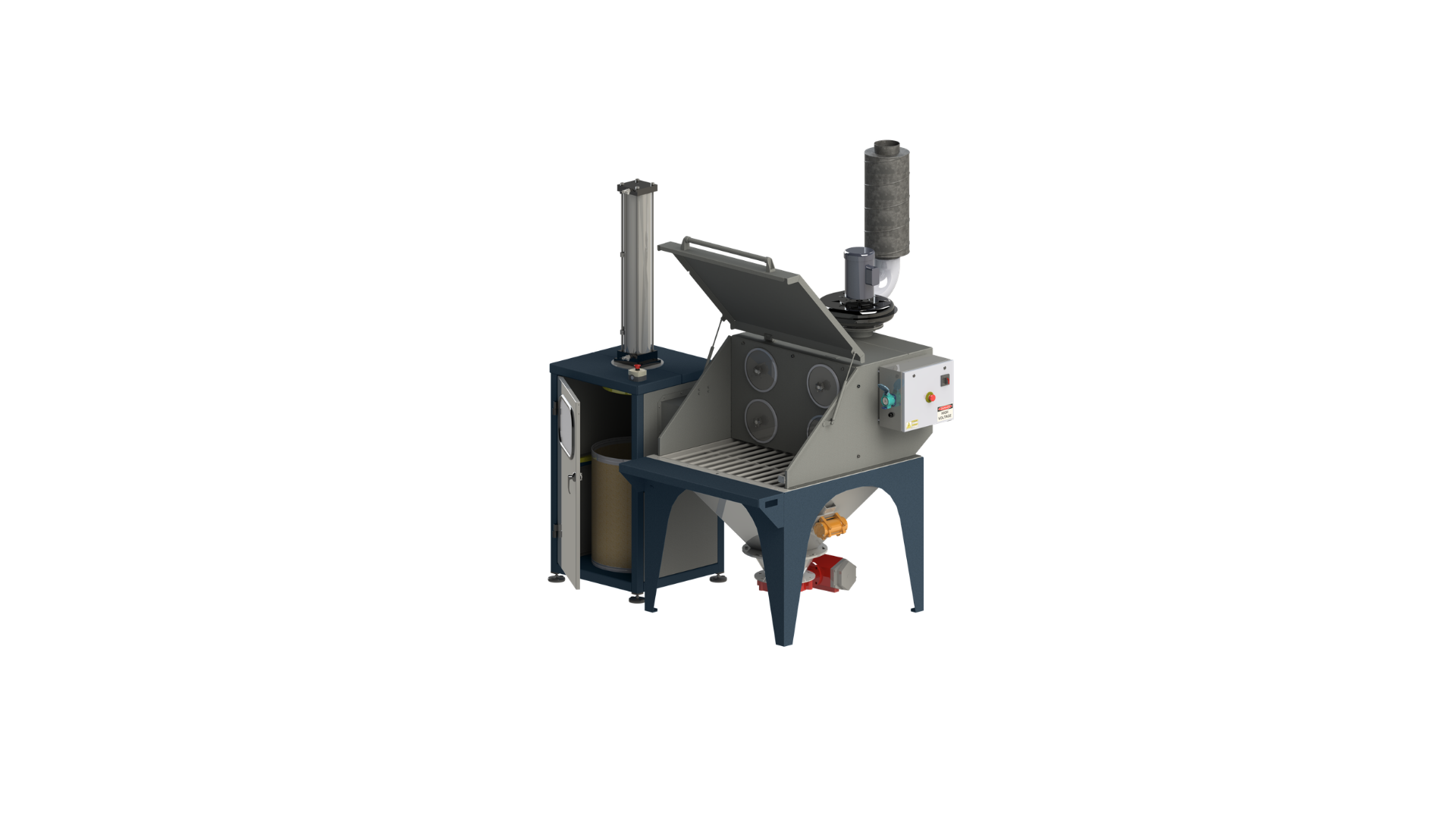

13-02 Bag Dump Station
The 13-02 Bag Dump Station is used for the controlled unloading of small volume bags, boxes, or other containers utilized in powder handling applications. Dust created from the unloading is contained through the use of an integrated downdraft hood with dust collector, providing a safer, cleaner working environment for operators.
Key Features
Integrated Dust Collection
Built-in downdraft dust control hood contains airborne particles during the unloading process, providing a safer and cleaner working environment for operators.
Safety Interlocks
Lift-off grate with integral safety switch and hinged lid with integral safety switch ensure safe operation. System cannot operate with guards removed.
Ergonomic Design
Built-in staging platform at ergonomic unloading height reduces operator fatigue and injury risk during repetitive bag dumping operations.
Discharge Valves
Discharge valves enable batch staging and metered dispensing for precise material introduction into downstream processes.
Removable Grating
Removable steel grating over the hopper prevents non-process materials from entering the system while allowing easy cleaning access.
Rugged Construction
Painted carbon steel construction with lift-off enclosure panels for easy maintenance access and long service life in demanding environments.
Specifications
| Electrical | 15 AMP at 120 Volts, 1 Phase, 60 Hertz |
| Compressed Air | 2-4 CFM at 90 PSI (Intermittent Duty), Clean & Dry |
| Construction | Painted Carbon Steel |
| Safety | Lift-off grate and hinged lid with integral safety switches |
| Dust Control | Integrated downdraft hood with dust collector |
| Discharge | Flanged outlet connection with batch staging valves |
| Air Intake | Bleed valve for system air balance |
Applications
