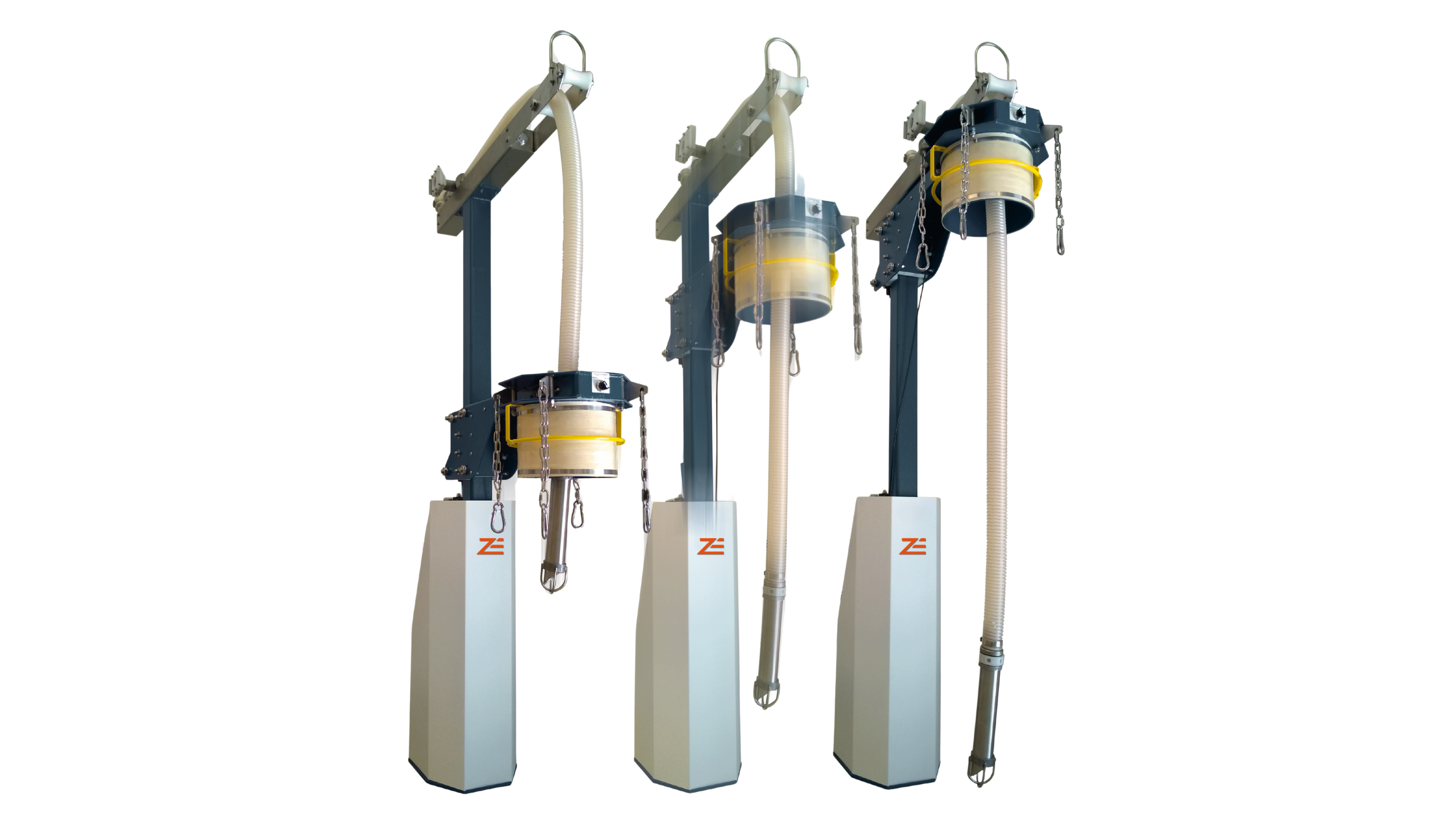

14v Direct From Bag Unloader
The 14v Series takes the heavy lifting out of emptying drums or bulk bags. Designed to handle free-flowing granules, pellets, or powders, this unique design draws the material from the top of the bag automatically. During the unloading operation, the carriage stretches the bag, forcing the material to the center, promoting continuous and complete discharge.
Key Features
Automatic Top-Draw Design
Unique wand system draws material from the top of the bag automatically, eliminating manual lifting and promoting continuous, complete discharge.
Compact Footprint
Center mast with 16" x 16" base plate allows the unloader to be utilized in tight spaces or low headroom applications where other systems won't fit.
Inflation Collar & Dust Containment
Manual inflation collar seals the bag snout or drum liner, containing dust during the unloading process for a cleaner work environment.
Simple Touch Screen Control
Intuitive touch screen interface for easy changeover operation and adjustment to system settings without specialized training.
UHMW Wear-Resistant Guides
Nylon centering rollers and UHMW wear-resistant guides ensure smooth bag handling and long service life with minimal maintenance.
Compressed Air Operation
Compressed air driven wand and carriage actuator with precision regulator for reliable, consistent performance in any facility.
Specifications
| Electrical | 5 AMP at 120 VAC, 1 Phase, 60 Hertz |
| Compressed Air | 10 CFM at 90 PSI (Intermittent Duty), Clean & Dry |
| Materials Handled | Free-flowing granules, pellets, powders |
| Base Plate | 16" x 16" secured to floor |
| Construction | Heavy duty structural tube, textured powder coat finish |
| Controls | Touch screen with adjustable system settings |
| Guides | UHMW wear-resistant with nylon centering rollers |
| Bag Handling | Flexible bag snout arms with adjustable wand bag guard |
Applications

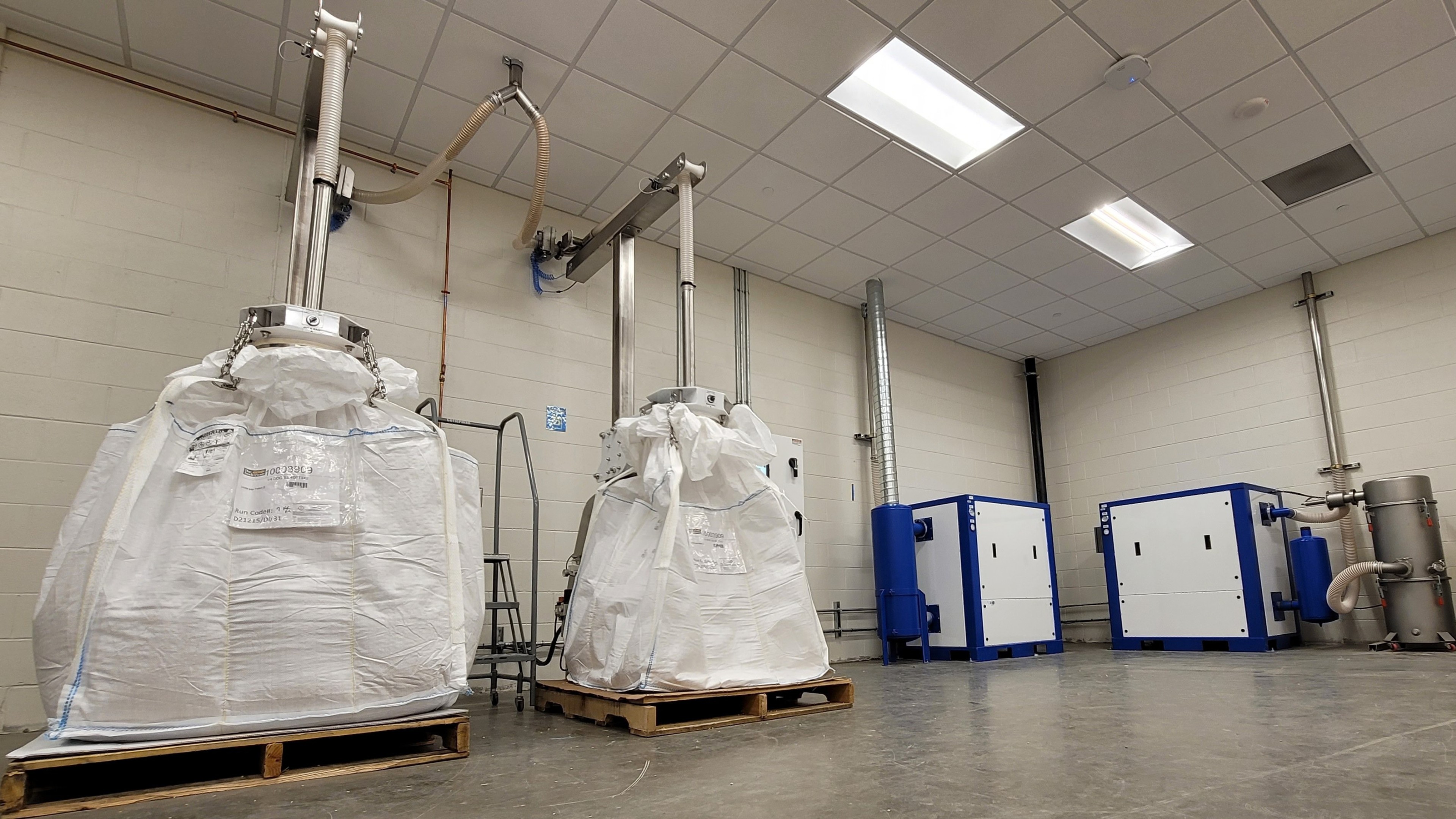

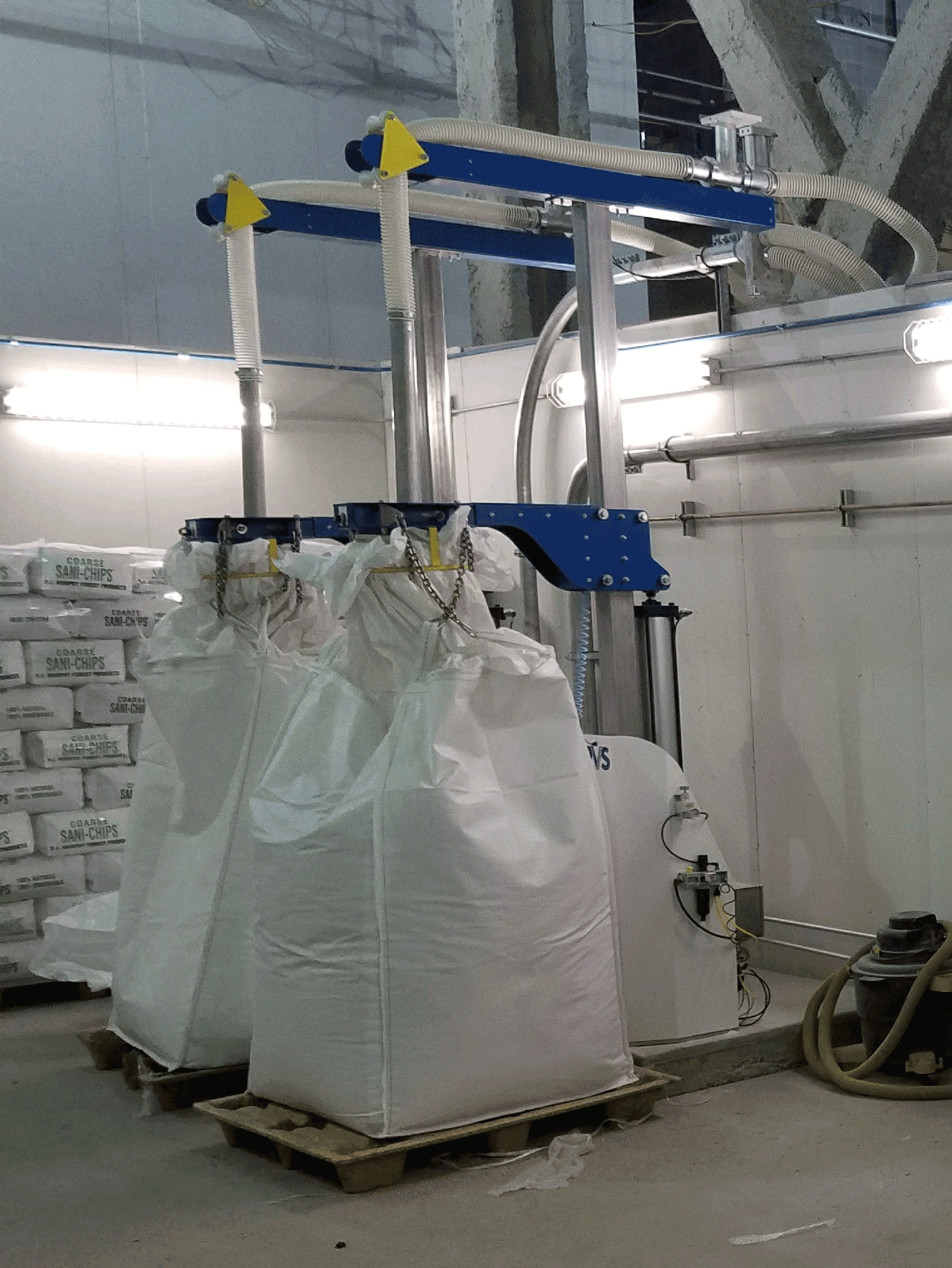

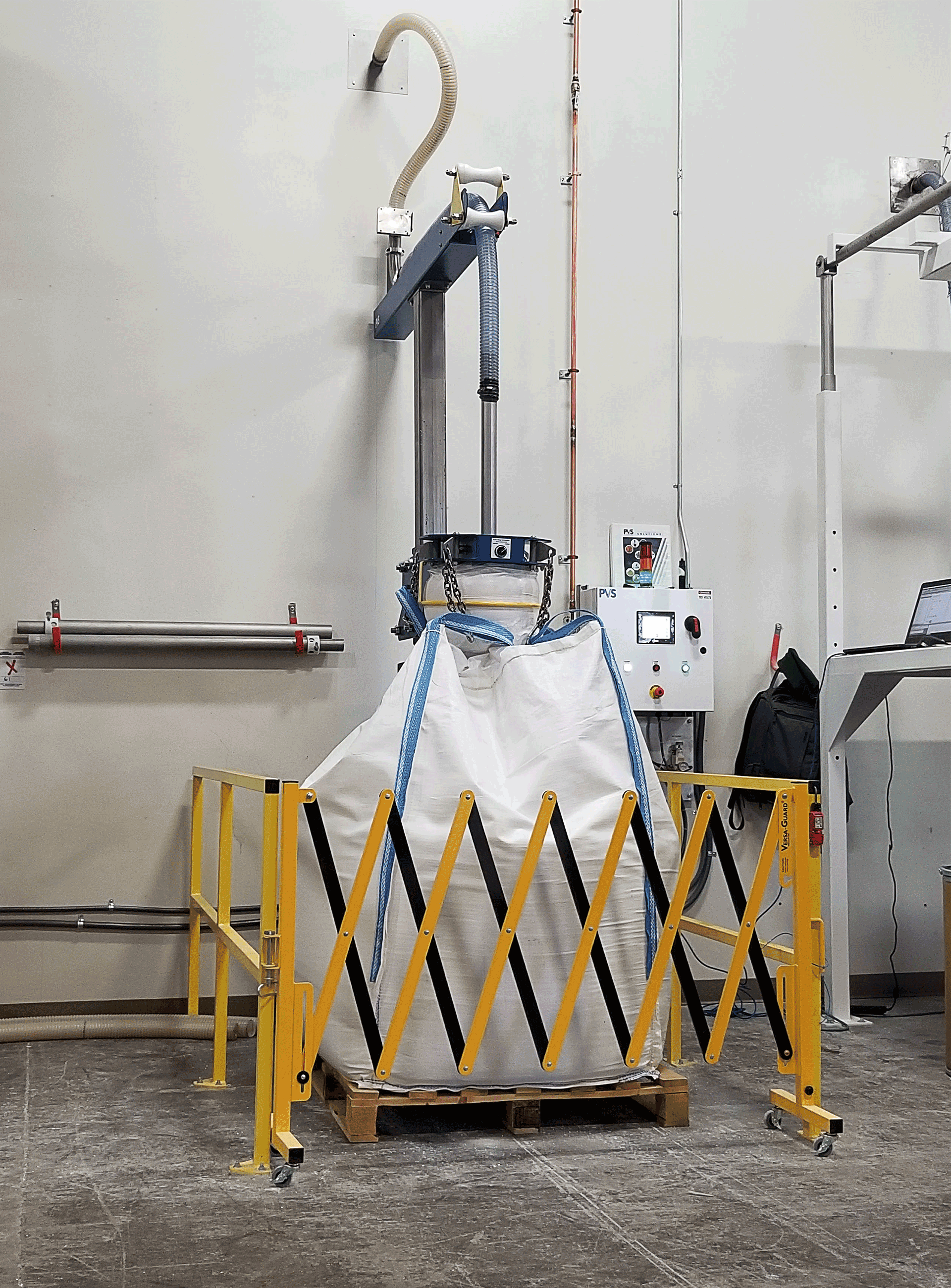

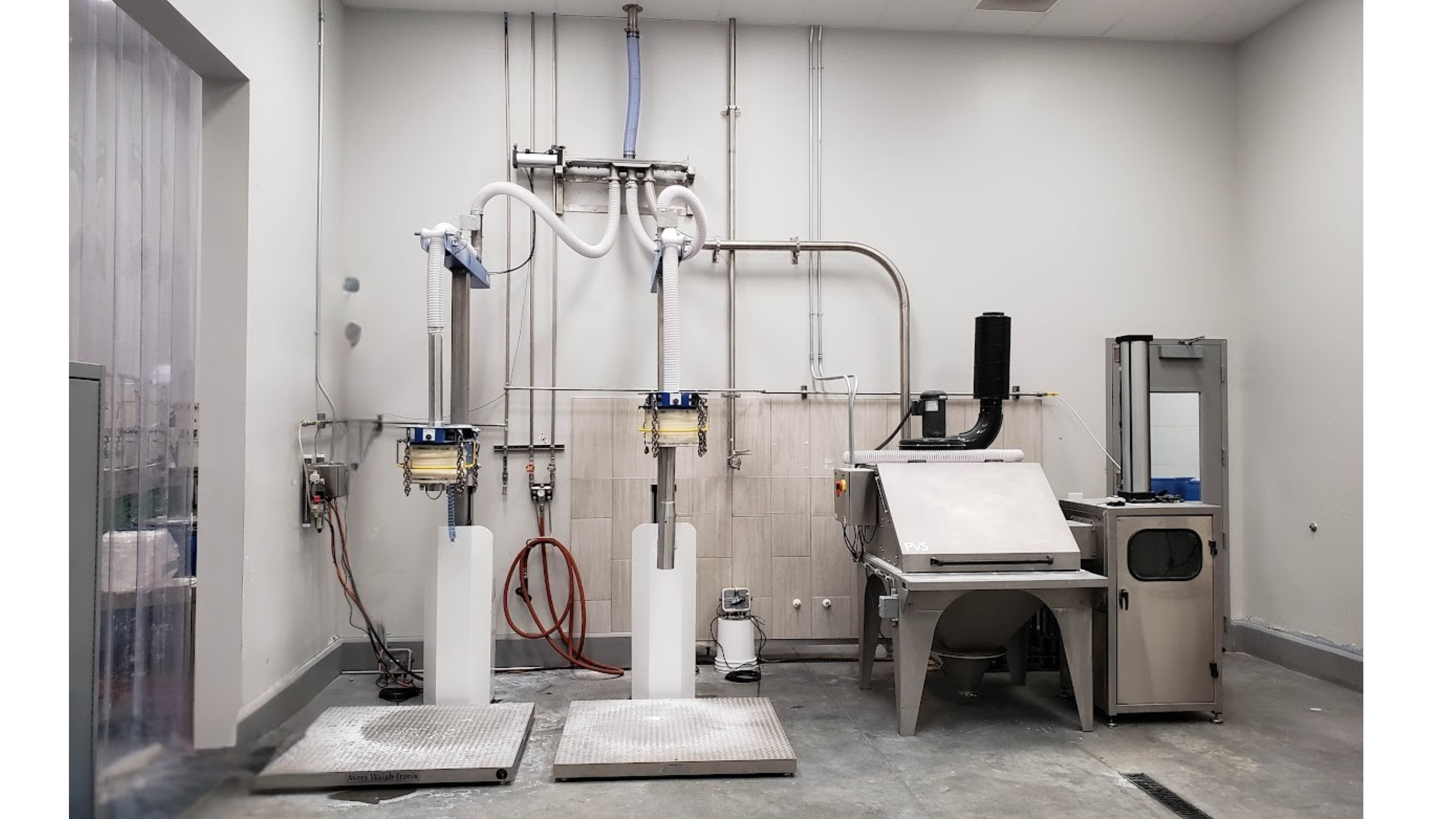

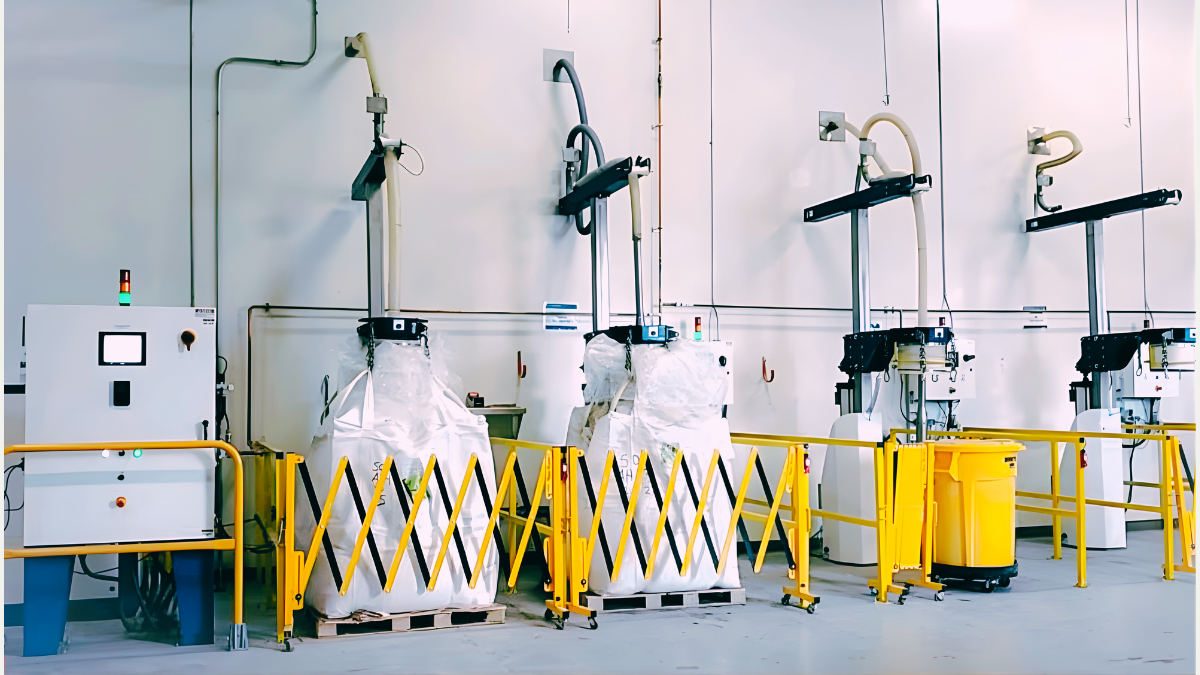

Photos & Media
14v Direct From Bag Unloader FAQ
The 14v is designed to handle standard bulk bags (FIBCs) and drums containing free-flowing granules, pellets, or powders. The flexible bag snout arms and adjustable wand bag guard accommodate a wide range of bag sizes and configurations.
The 14v is specifically designed for tight spaces and low headroom applications. The compact center mast design with a 16" x 16" base plate requires significantly less overhead clearance than traditional fork-style or hoist-based unloaders.
The inflation collar seals the bag snout or drum liner during the unloading operation, containing dust at the source. The system can also be integrated with downstream dust collection equipment for additional containment.
